HETTICH SENSYS 110° HINGE WITH INTEGRATED SILENT SYSTEM (SENSYS 8645I), NICKEL PLATED, OVERLAY, OPENING ANGLE 110°, TH-DRILLING PATTERN 52…

HETTICH SENSYS 110° HINGE WITH INTEGRATED SILENT SYSTEM (SENSYS 8645I), NICKEL PLATED, OVERLAY, OPENING ANGLE 110°, TH-DRILLING PATTERN 52 X 5.5 MM, FOR SCREWING ON (-)

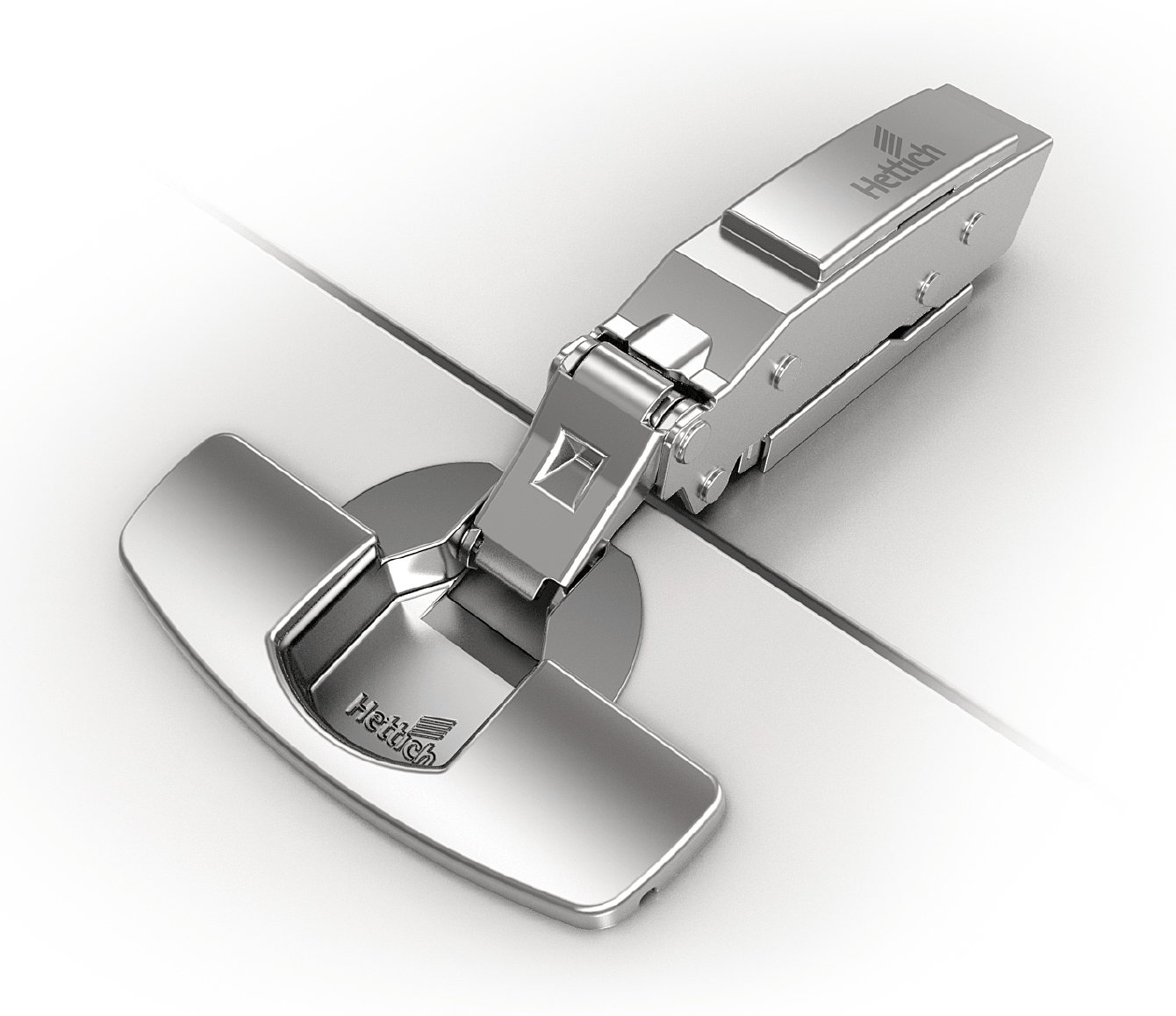

Sensys 110° hinge with integrated silent system (Sensys 8645i), nickel plated, overlay, Opening angle 110°, TH-drilling pattern 52 x 5.5 mm, for screwing on (-)Article Number 9071205 Sensys 110° hinge With integrated Silent System, with self closing feature (Sensys 8645i) Quality classification under EN 15570, Level 3 Opening angle 110 ° For door thickness 15-24 mm Door mounting option overlay (B 12.5 mm) TH - drilling pattern 52 x 5.5 mm Cup depth 12.8 mm Installation for screwing on (TH 52) Integrated overlay adjustment +2 mm / -2 mm Integrated depth adjustment +3 mm / -2 mm Height adjustment at mounting plate steel nickel plated
